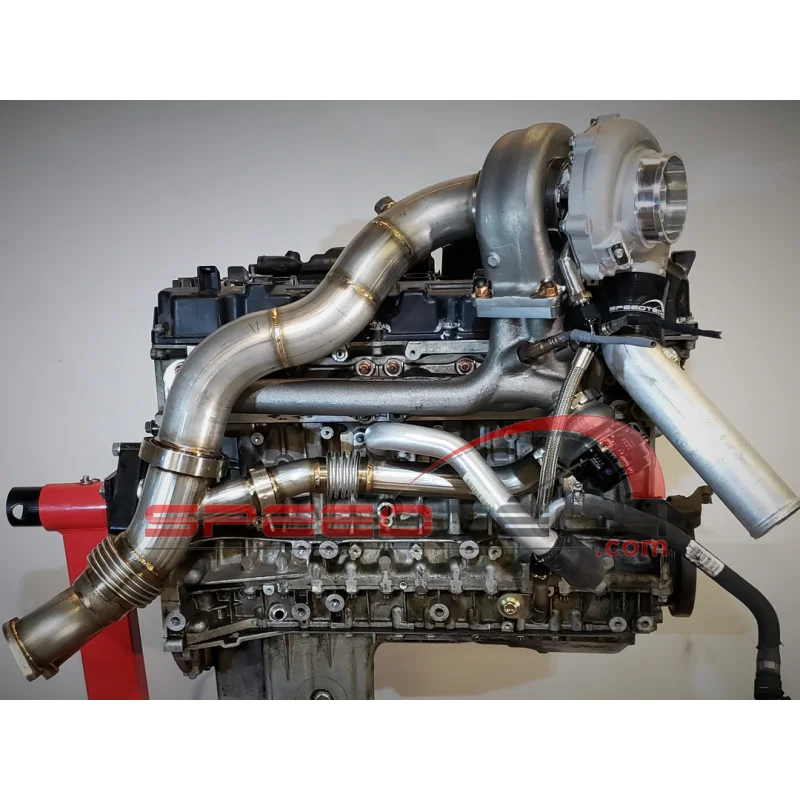

SPEEDTECH N54 BORGWARNER S257 SX-E TOP MOUNT KIT

Please include in the order notes which model of car the kit is going on:

2007-2010 135i/335i (RWD/MT)
2007-2010 135i/335i (RWD/AT)
2007-2010 335xi (AWD/MT)
2007-2010 335xi (AWD/AT)
2010-2013 335is (RWD/DCT)

Also please note which AR size:

0.83,1.0,1.15,1.22

PLEASE NOTE: The turbine housing on the S252 SX-E uses a T4 bolt pattern, but uses T3 port sizes. BorgWarner notes that it can be ported out to a true T4 port size.

INCLUDED IN THE KIT:

• BorgWarner S257 SX-E Turbo
• T4 Manifoldwith studs and nuts (Ceramic or Non-Ceramic options)
• 2 piece Stainless Steel Tubing(*If you will be fabricating your own and would like to delete our 2 piece tubing parts from your order, email us for a discount code)
• Stainless Steel Wastegate Pipe - (Recirculating or Open Dump options)
• V-band clamps
• Billet CNC Aluminum Oil & Coolant Plugs, O-rings
• Stainless Braided -4AN Oil Feed Hose, AN Fittings
• Stainless Braided -10AN Oil Drain Hose
• Stainless Steel -10AN Turbo Drain Fitting
• Stainless Steel -10AN to Engine Block Fitting
• Aluminum Charge Pipe
• Silicone Couplers
• Coolant Expansion Tank Relocation Kit
• Wastegate (Choice of Turbosmart Hypergate, TiAL MVR or VS Racing 44mm)*you may also choose to purchase the kit without a wastegate

LEAD TIME:
Lead time on a BorgWarner turbo is generally 2 to 6 weeks,the remainder of the kit has a lead time of2 to 4 weeks.
