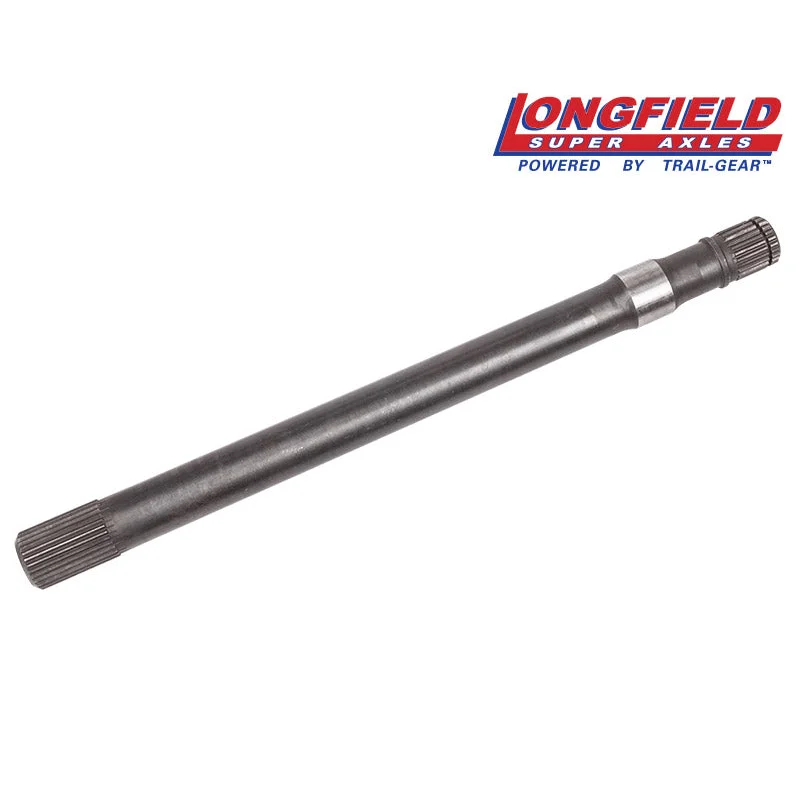

Longfield FJ80 24-Spline Inner Axle (Long)

Longfield FJ80 Inner Axle Shafts

The 4340 Chromoly Inner Axles receive a special "through" hardening and are heat treated. The spline count on the birfield side of the axles are 24-spline and the diff side is 30-spline.

Our Longfield FJ80 Axle Shafts come with the c-clips already installed. These shafts are great for replacements or spares.

Specifications:

• Manufactured from 4340 chromoly
• The spline count on the birfield side of the axles are 24-spline and the diff side is 30-spline
• Comes with c-clips already installed

Application Data:

• 1990-1997 Toyota Land Cruiser FJ80**
• 1995-1997 Lexus LX 450

** 1990-1993 models with short drive flanges will need to obtain the taller drive flanges (Toyota P/N 43421-60040) to be able to reuse the OEM grease caps.
