Dana 44 to Toyota Pinion Flange Kit (26 Spline)

Doing a SAS in a Toyota with a Dana 44? This is the flange you need to use your existing drive line! Works great in buggy applications because the flange style yoke reduces the likelihood of breaking a yoke that's spinning on a rock. This flange is made from 5140 forged steel and will convert your high angle Toyota driveshaft to a 26 spline Dana 30/35/44/50 differential. It can also be used on transfer cases with 26 spline outputs (e.g. Jeep Dana 20 and Dana 300).

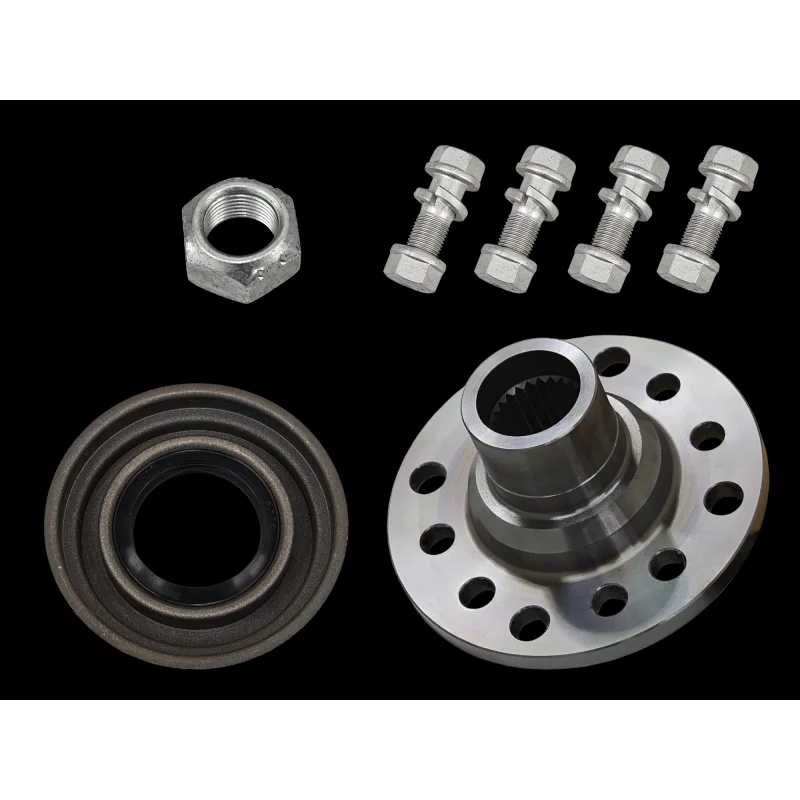

Flange Kit Includes:

Forged 26 spline triple drilled pinion flange / yoke (1)

HD pinion seal (1)

Pinion nut (1)

10mm Extended Toyota driveshaft bolts (4)

SPECIFICATIONS:

• Splines: 26
• 60mm x 60mm x 10 mm hole
• 56mm x 64mm x 10mm hole
• 66mm x 66mm x 11mm hole
• OD: 111mm or 4.375"
• Pilot: 46mm or 1.81" (female)
• Seal OD: 39.6mm or 1.559"
