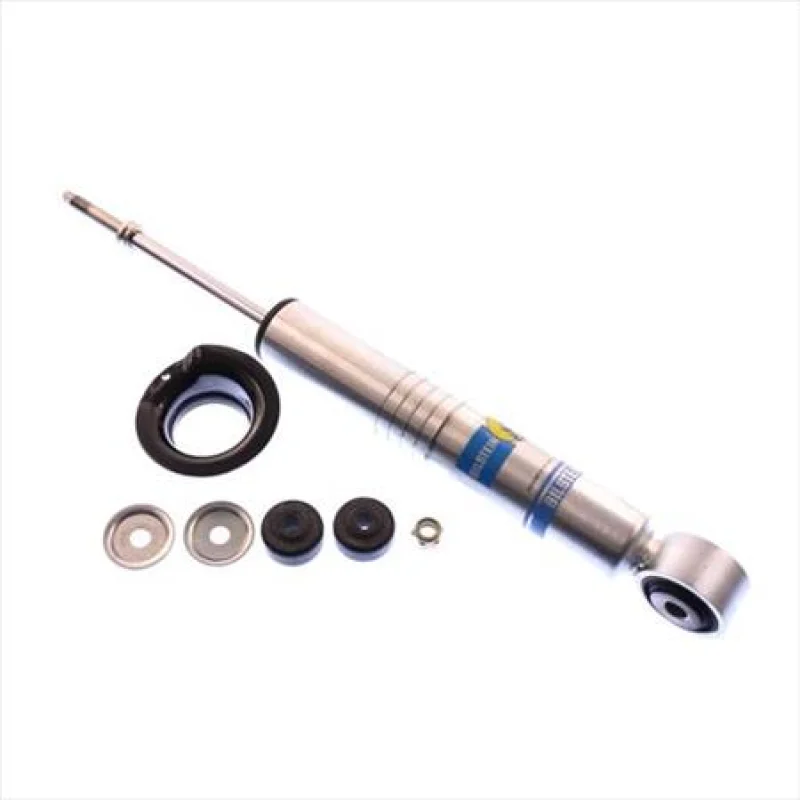

Bilstein 5100 Adjustable Front Strut (96-02 4Runner)

Bilstein's 5100 Series Ride Height Adjustable Shocks are Zinc-plated shocks that install like factory replacement shocks and are designed to correct the factory nose-down rake, allowing for the use of larger wheels and tires. The OEM spring seat is repositioned to provide more preload to the factory spring. The result is a level front to rear ride height. Features include: Monotube gas pressure construction, Extremely affordable, Snap ring grooves on shock body provide up to 2.75" of front end lift (depending on application), More practical than strut extension or spring pre-load spacer kits, Offers increased wheel travel while accommodating a 33" tire. Fits 1996-2002 4runner. Sold individually.

Technical Details

• Bilstein 5100 Series Ride Height Adjustable Shock Absorber
• Collapsed Length (IN): 13.23
• Extended Length (IN): 18.68
• Travel Length (IN): 5.45
• Lower Mount: Eye 14.4mm
• Upper Mount: Stem
• Shaft Diameter: 14mm
• Reservoir: No

• Finish: Zinc plated
• Body Design: 46mm ID snap ring grooved body (Coilover)
• Internal Design: Mono tube
• Boot Included: No
• Part Number 24-248730
