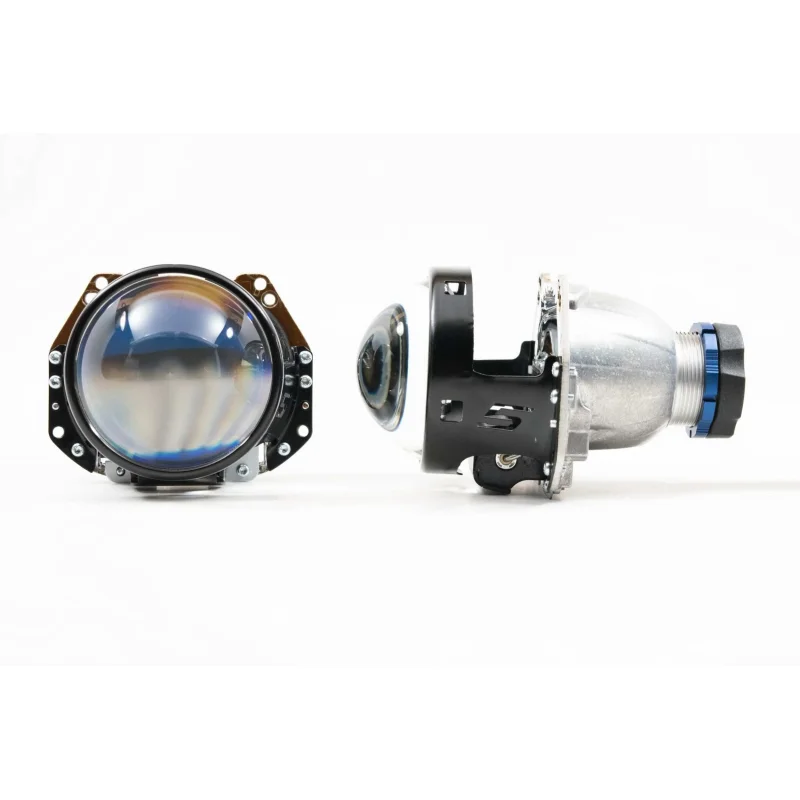

HIGHFive!Morimoto has officially achieved Projector-Perfection with the 5th gen Mini D2S Bi-xenons! If youre looking for the ultimate beam pattern boner; its really not going to get any better than this folks. Perfectly balanced low beam. Hyper spot high beam. The crispiest ECE style cutoff. Unquestionable OEM-qualityall packed into a projector thats undeniably easy to install. If we died and went to headlight heaven, the 5.0 would be greeting us at the gate.
Projector-Perfection:There are other projectors that produce brighter hot spots. There are other projectors that have unholy amounts of width.But no other option creates the perfect balance of width & hotspot lux (aka distance) quite like the 5.0. In order to create the ultimate weapon for driving in the dark; Morimoto baked in best practices from a variety of well-respected OEM and aftermarket projectors. With over a decade of experience, we trust that their latest and greatest equates to the perfect all-around perfomer.
Distance:The hot spot on the new 5.0 bi-xenon is roughly 70% brighter than the already-impressive 4.0 design. While the high beam unloads a lot more volume of light; virtually no additional intensity has been reserved. What that means: You get the maximum benefit from your bulbs & ballasts in low beam modewhere drivers spend 99% of their time. The controlled decrease in intensity from the hyper-hotspot down through the foreground results in a distribution of light that makes driving at night very comfortable & safe. Why? Because too much intensity on the ground too close to the front of your vehicle will make your eyes adjust, compromising your ability to see very far. Science!
Width:Power is nothing without control, and even the best D2S bulbs and 50w ballasts wont always result in a satisfying output when projected out on the road improperlyso the KEY is really how that light is deployed. Thanks to the beauty in the center of this beast [all new optics package + flat cast cutoff shield] You really end up with a beam pattern thats extremely wide and flat, with zero bowing. But thats not all: The position of the shield has been fine-tuned so that there is a band of intense light that spans side-to-side directly under the cutoff line. RX350 Bi-xenons, S2000s, LS430s, SC430s.all of the best from Koito now need to bite their tongue, because thats all they had on Morimoto prior to the 5.0 party!
ensENS:The blue tint to the lens is more than marketing fluff too. Thats an AR coating, and it serves a real purpose. AR coatings increase the transmission of light through the glass all while decreasing bleed. The result? 10% more light and less glare compared to a traditional clear lens. The blue-hue may not be for everybody, but in this case were down.Read more about AR coatings HERE.
Hardware Upgrades:Forget the finicky 2 piece bulb holders found on the 4.0s, these come standard with the MotoHolders an all-new one-piece design thats far easier to work with. The new CNC machined aluminum lock rings are not only pretty looking, but theyre 300% stronger than the old die cast part. To tighten them, Morimoto now offers an included lock-ring tightening tool that works with any 10mm socket set. Torx screws now hold the lens holder on too instead of Philips screws. While the 5.0 gets a big boost in the performance department, its also clear theyve paid attention to the details in the parts department too. We like it!
Installation Summary:On a H4-based headlight reflector for example...Remove the headlight lens, insert the threaded mounting shaft through the pre-existing hole in the back of the reflector, add the alignment plate, tighten the lock ring, and re-seal the headlights. For other applications, minimal cutting will probably be involved but you'll find the results well worth it! Check out the installation procedure linked above.
Confidence:Order with confidence when purchasing through our website. The products offered have been thoroughly tested to make sure they meet our strict quality standards to ensure the best reliability and performance. We always provide honest feedback on products and helpful tips for any project due to our extensive experience with all makes and models. We offer competitive pricing, fast shipping, and the latest and greatest products from the top manufacturers. Contact us today with any questions; you wont regret it!
WHAT'S INCLUDED
Projectors:2x Morimoto Mini D2S 5.0 Bi-xenon
Bulb Holders:2x MotoHolders (D2S)
Lock Rings:2x CNC & Anodized Aluminum
Solenoid Inputs:2x 9006 Male Pigtails
Warranty:3 Years
TECHNICALHeight:85mm
Width:102mm
Depth:148mm
Lens Diameter:3.0"
Mounting Shaft:Diameter = 35mm
Lock Nut:Size = 46mm
Housing Depth:117mm Minimum
Standard Lens:AR Coated Kuria OpticCOMPATIBILITYApplications:Universal (cars/trucks/motorcycles)
Direct Fitment:H4 Headlights (little/no mods required)
Mods Req:H1,H7,H11,H13,9005,9006,9007 housings
Ooutputs:Low and High Beam
United States:LHD (Left Hand Drive)
AU, UK, JAPAN:RHD (Right Hand Drive)
Bulbs:D2S/D2H HID Only
HID Systems:35w and 55w
Shrouds:All Styles Except Mini Gatling/Graphite
Centric Rings:Not Required
Certifications:Exceeds DOT requirements
